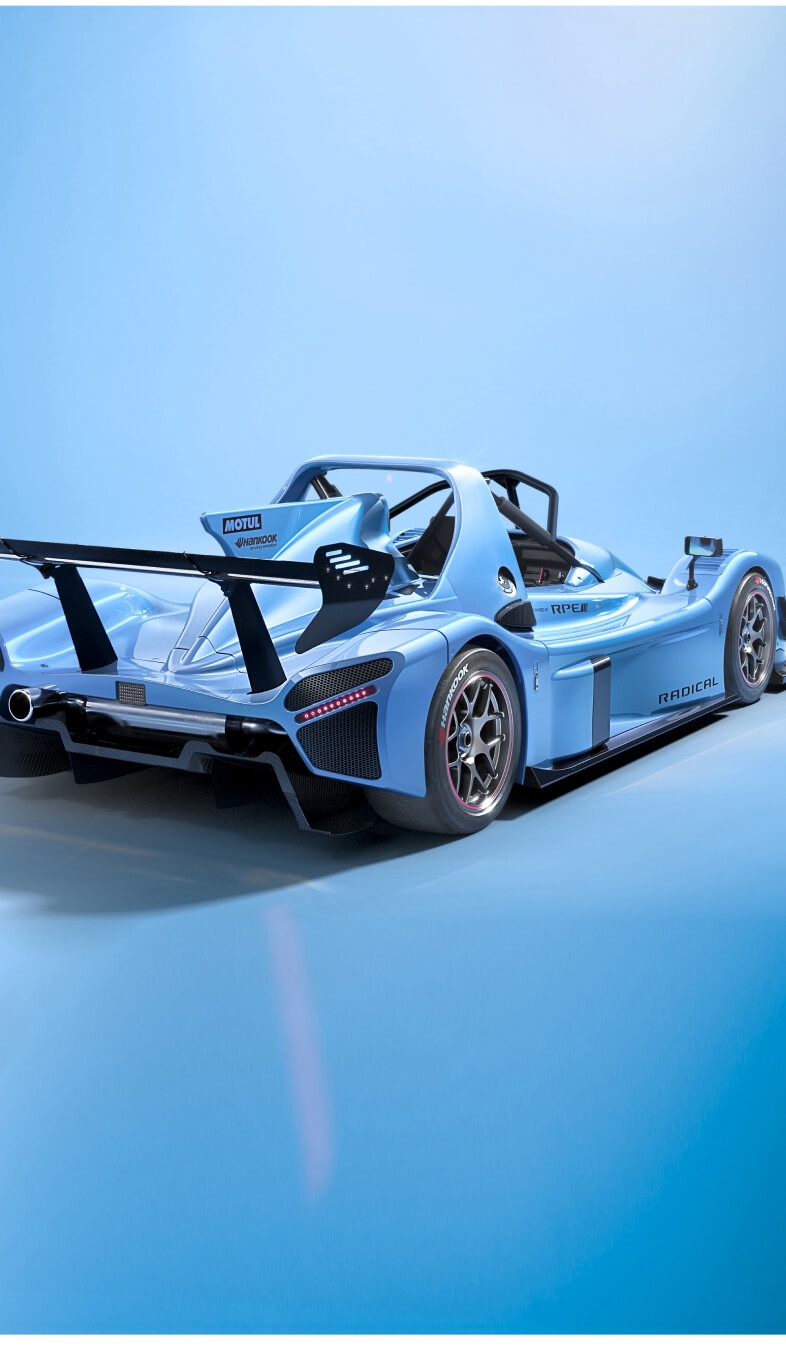

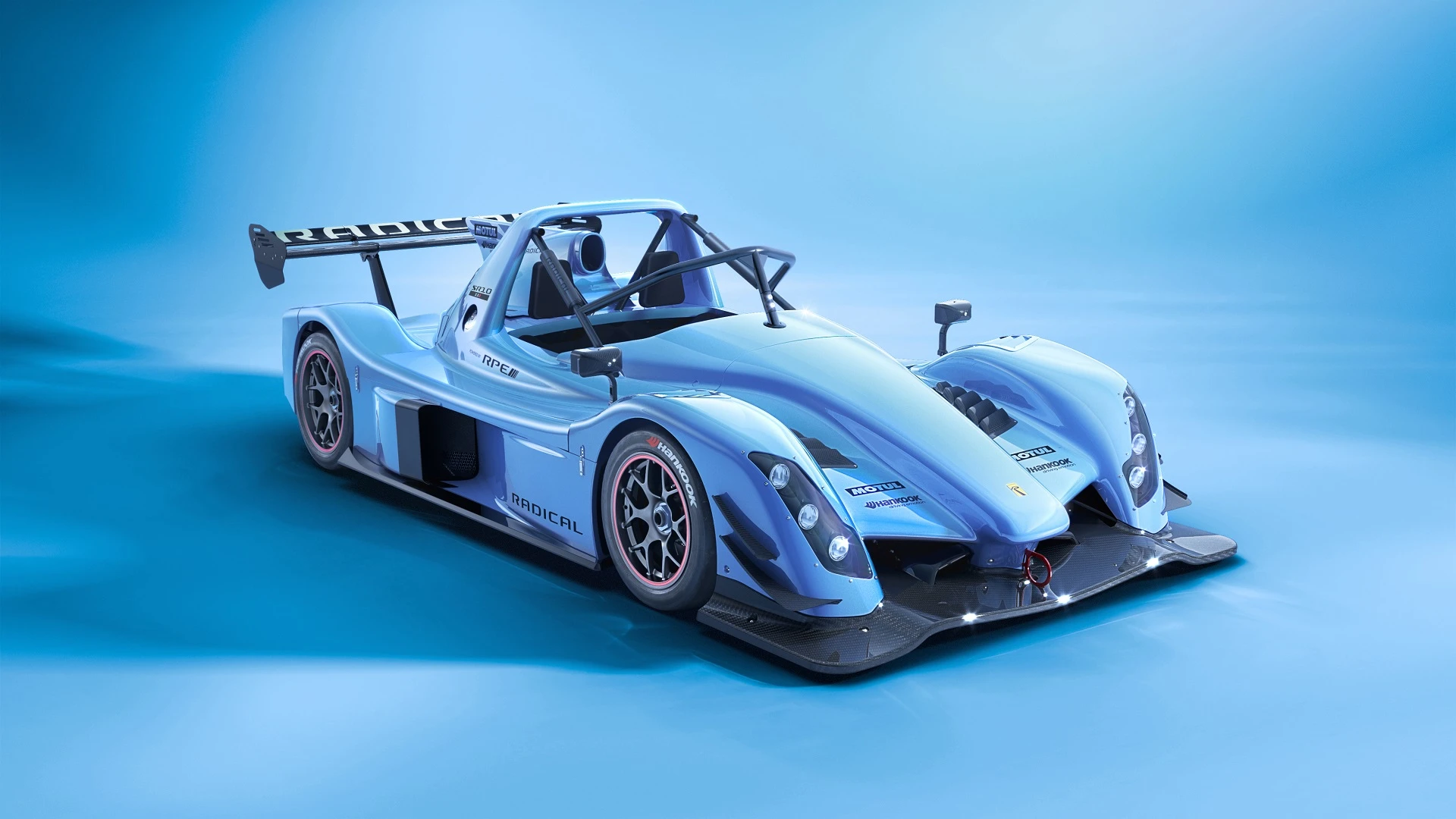

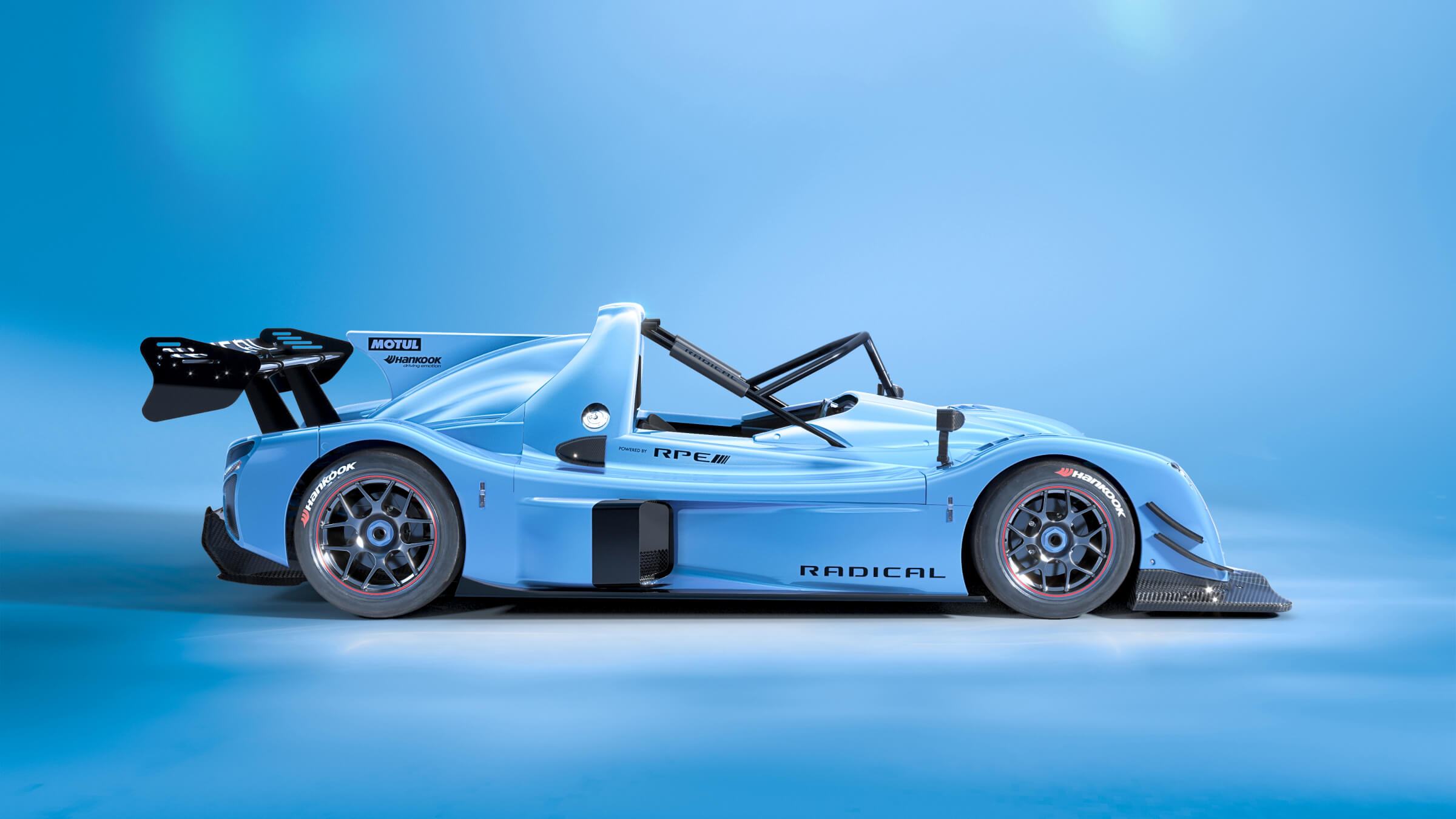

SR10 XXR

Pure extreme performance

Power: 425 BHP

Weight: 725 kg

Pure extreme performance. the top-of-the-range radical with extra grunt from a turbo-charged engine.

Ideal for track-day enthusiasts, motorsport country club members, and racers across the globe, the SR10 delivers more power and torque than has ever before featured in Radical’s SR line-up. With a high horsepower, long-life powertrain, the Radical SR10 is everything you’d expect from a Radical – turbocharged.

The SR10’s sole purpose is to out-run and out-manoeuvre the competition whilst remaining easy to drive and cost-effective to run. Radical Performance Engines (RPE) cutting-edge engine tuning capabilities and Ford’s EcoBoost's reliable engine architecture come together to unleash a powerful race engine with 425bhp and 380lb-ft of torque. A bespoke Garrett G-Series turbocharger delivers better throttle response and reduced lag, with forged pistons and connecting rods and a bespoke dry-sump lubrication system for bulletproof durability. This high-output engine is integrated with a new Hewland GT3-derived six-speed gearbox.

Everland Speedway

에버랜드 스피드웨이

1 M 54.313 S

엄재웅

Korea International Circuit

코리아 인터내셔널 서킷

2 M 08.112 S

Chris van der drift

Inje Speedium

인제 스피디움

1 M 37.797 S

Henry

SR10 XXR
Standard
Equipment

Body

Lightweight spaceframe chassis with FIA-specification safety cell and crash structure
LMP-inspired, high-downforce composite bodywork
XXR-generation LED race lighting including FIA high-intensity central rain light
Bi-plane high-downforce track day rear wing and diffuser
XX-generation Le Mans pre-preg carbon composite mirrors
XXR-generation rear wing endplates

Power Train

Six-speed Hewland sequential transaxle
Radical developed paddle-activated gearshift system with auto-blipper
Automatic torque-biasing limited slip differential
Mid-engined, rear-wheel-drive

Engine

RPE-Ford 2261cc, 425bhp & 380ft-Ib, turbocharged engine with direct injection, twin-independent variable cam timing and drive-by-wire throttleCustom Garrett turbocharger
Forged motorsport pistons, connecting rods and bespoke dry-sump system
Latest Life Racing ECU with detailed interrogation function for maintenance and analysis
High-flow racing exhaust system

Suspension

Fully adjustable Nik-link suspension system, front and rear unequal length top and bottom wishbones, fabricated uprights, front and rear adjustable pushrods
Lightweight cast aluminium updated uprights providing an improvement in durability
Interchangeable roll bars
Intrax triple-adjustable dampers with Anti-Roll Control (ARC) technology

Cockpit

Two-seater chassis with twin or single-seat options, optimised for use with a moulded race seat insert
AiM Formula Wheel with integral LCD display, lightweight shift paddles and on-wheel switching.
Display functions include LCD rev counter, gear indicator, shift light and engine/gearbox strategy manettino controls
Ergonomic dashboard with waterproof, backlit momentary touchpad
Dash-mounted brake bias adjuster
Wind deflector

Wheels and Tyres

Radical XXR design centre lock, cast aluminium wheels with red accent
8" × 15" diameter front and 10.5" × 16" rears
Slick & wet tyre options, Radical recommends Hankook

Features

Radical four-pot calipers on 315mm x 35mm front & rear fully-floating 48-vane disc brakes
Front & rear brake cooling
Solid-state Power Distribution Module (PDM) with Controller Area Network (CAN) linked wiring and telemetry
Data integration allowing additional data logging including tyre pressure and temperature monitoring, and laser ride height logging
FIA specification, foam filled 77L fuel cell
Full electronic fire extinguisher system

Dimensions

Length: 4077mm
Width: 1799mm
Height: 1093mm
Weight: 725kg

SR10 XXR Options

Convenience Pack (fuel drain and trickle-charger Li-ON)
Additional silencer
Carbon-fibre splitter and rear diffuser
Enhanced Data Pack (SmartyCam video system with GPS and brake pressure and steering logging sensors)
Advanced dynamic laser ride height (front and rear) logging
Suspension logging sensors
Electronic Power Assisted Steering (EPAS)
Forward-facing stay head protectors
Driver & passenger seat insert

Billet upright upgrade
Pre-preg carbon-fibre double front dive planes
Air jack system
Pre-preg carbon-fibre dashboard
Tyre pressure and temperature monitoring system
Dry-break refuelling system
Nik-Link rollbar set
Composite halo head restraint
Halo-inspired Cockpit Safety Structure (more info)

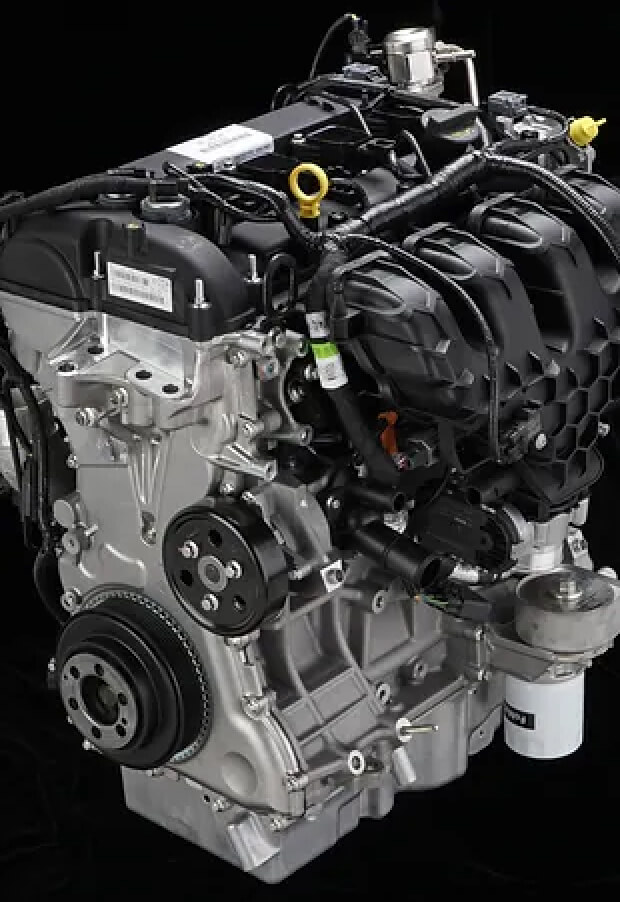

Under the Bonnet

RPE-FORD 2.3L TURBOCHARGED

This is no ordinary production unit; as Radical’s in-house powertrain division, RPE have developed a bespoke turbocharger, induction and engine management package to release over 425bhp and 380lb-ft of torque from the engine.

Learn More

Core to the Radical DNA is the aerodynamic grip, nimbleness and balance. Known all around the world, by drivers of all abilities as a terrific car to drive – easy to pick up but hard to master.

Unlike road cars that have been modified for track use, the full Radical range has been designed for track use from factory.
The chassis is optimised for performance, focusing on aerodynamics, high downforce, and stability at high speeds. This ensures that the car provides maximum grip and agility during high-performance driving.

Beneath the skin of every Radical is a tubular spaceframe chassis that provides an excellent strength-to-weight ratio, enhancing the car's overall performance and safety. The design of the chassis helps reduce the overall mass of the vehicle, resulting in improved acceleration, braking, and cornering performance. Surrounding the chassis, the lightweight composite fibreglass bodywork is available in a choice of seven colours from factory. Combined with the spaceframe chassis, this provides unbeatable value for money for a pure track car that is easy to maintain and repair anywhere in the world.

Adjustable rear push rods and three-way dampers allow drivers a full range of control to setup the car ready for the track ahead.
An adjustable rear wing allows the driver to change the setup to suit the conditions, exploring the balance between straight-line speed and cornering performance.

With over 25 years of experience and almost 3,000 cars sold to date, every component on a Radical has been tested under extreme conditions to give customers the confidence they need to push lap after lap. New innovations, such as the optional cockpit safety structure, are designed to further protect the driver. FIA specification crash boxes and fuel cells along with full electronic fire extinguisher systems come as standard.

Choose from single or dual seat options to allow for driver coaching or entertaining passengers. Each car is also available with various seating position options including centre-seat, left or right-hand drive.
The dashboard features a customisable digital display to bring real-time information to the driver, and can be equipped with an optional onboard video system with GPS and race logging, including brake pressure and steering sensors.
